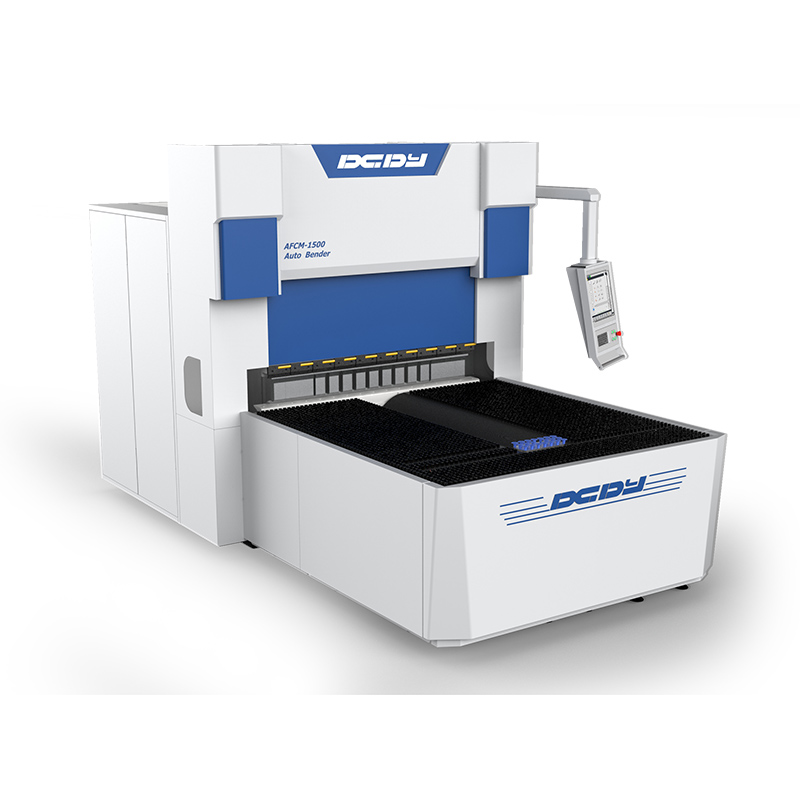

    CNC Panel Bender With Manual Tool Changer

    Introduction：
    Features and Functions
    A. Full servo-electric CNC Panel Bender
    B. Bending up and down
    C. Manual tool changer

    GET A QUOTE

    Product Description

    Bending Center With Manual Tool Charger
    cnc bending center

    Features and Functions
    A. Full servo-electric Bending Center
    B. Bending up and down
    C. Manual tool changer
    D. Automatic bending sequences
    E. Automatic part positioning by suction-cup manipulator or clamping manipulator
    F. Work from the gauging system side
    G. Automatically adjusts to the sheet thickness
    DGDY CNC Bending Center

    Technical Parameters

    Specification Unit Model
    AFCM15 AFCM22 AFCM35 AFSD15 AFSD22 AFSD35
    Max. Sheet thickness mm 1.2 1.2 1.2 1.2 1.2 1.2
    Max. Sheet thickness mm 1.5 1.5 1.5 1.5 1.5 1.5
    Upper tool height mm 210 210 210 210 210 210
    Upper blade height mm 170 170 170 170 170 170
    Lower blade height mm 170 170 170 170 170 170
    Min. bending height mm 170 170 170 170 170 170
    Press stroke speed mm/s 200 200 200 200 200 200
    Bending speed mm/s 200 200 200 200 200 200
    Motor Power kw 38.3 38.3 38.3 38.3 38.3 38.3
    Dimension (L) mm 4100 4800 5800 4100 4800 5800
    Dimension (W) mm 2500 2600 4000 2500 2600 4000
    Dimension (H) mm 2450 2650 2950 2450 2650 2950
    Weight kg 9500 12500 15500 7500 10500 12500


    Machine Application

     DGDY bending center application
